DJF(e) series Double-door Cone Fan(Butterfly Cone Fan)
1. Using advanced front double door opening device, small wind resistance, good sealing, high efficiency, lengthened cone design improve exhaust power.
2. Fan double doors closed with the rubber sealing which effectively avoid air backflow when start fans at different time. Greatly improve the operation efficiency by 15-20% compared with the same power fan.
3. Sanhe fan blade is special designed for top grade efficiency which made of Krupp stainless steel by punch forming. Large air volume, no deformation, no broken, no dust, attractive and durable. Thickness 1.2mm, surface finish BA grade.
4. Fan blades are adjusted by intelligent dynamic-balance tester, ensure the fan smooth running, lower vibration, less noise, increase stability.
5. The first adopt Type B belt which 3times longer service life instead of type A.
6. Hot-DIP galvanized blade support and safe net ensure never rust.
7. Complete new CNC production line improved fan quality up to top grade, aesthetic appearance.
YUYUN SANHE DJF(g) Series Double-door Cone Fan Specifications:

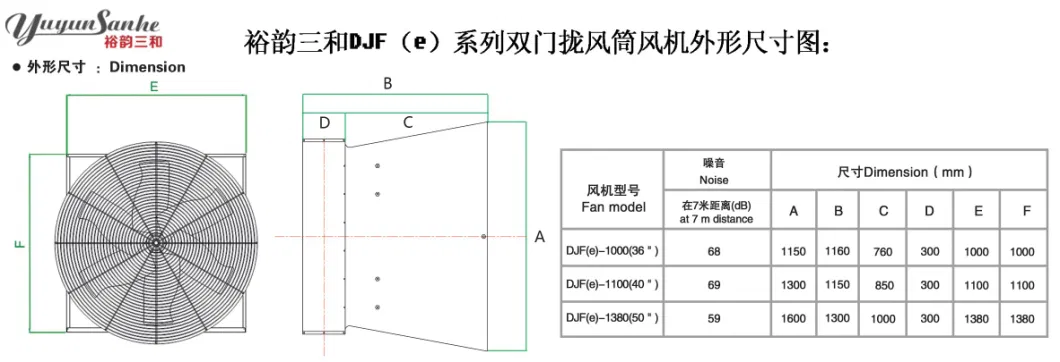

YUYUN SANHE DJF(g) Series Double-door Cone Fan Photos:
|Model specifications||Diameter biades mm||Blades rotational speed rpm||Motor rotational speed rpm||Air flow m/h||Total pressure||Noise decibels||Import power||Rated voltage||High||Width||Thick|
|DJF(c)-1100||1000||600||1400||36000||70||< = 65||750||380||1100||1100||1150|
|DJF(c)-1220||1100||460||1400||41000||73||< = 65||750||380||1220||1220||1200|
|DJF(c)-1380||1270||439||1400||51020||80||< = 65||1100||380||1380||1380||1300|
Packaging & Shipping
1. Package with carton box in completely assembled or unassembled.
1×40HC loads assembled 48pcs, unassembled 270pcs.
2.Shipped with dry containers, can be deliver to Qingdaro Port or destination Port.
1. Sample is available, it needs pay.
2. The Galvaized Sheet frame, and the Stainless Steel frame is availableFAQ
1. Price items: EXW, FOB Qingdao, CFR or CIF
2. Payment term: 30% T/T deposit in advance, the balance be paid againse the BL copy. Or 100% L/C at sight.Company Information
Quality first , Customer first, Prestige first
Shandong Yuyun Sanhe Machinery Co.,Ltd is the professional manufacturer of ventilation, cooling equipment, humidification and heating equipments.
We have gotten many titles such as" China Ten Top Brands Fan" "AAA Level of National Quality Company" "Honesty and Qualitative Enterprise".
Our company is located in Qingzhou , Shandong Province, a developing city with long history. The factory occupied 30,000spm and the workshop area is 15,000spm. We have an efficient team containing more than 300 workers.
Our products are widely used in agriculture and industry's ventilation, cooling system and heating system
Application for: animal husbandry ,poultry house ,livestock breeding, flowers and plants, greenhouse ,factory workshop, textile, chemical, medicine ,tea, vegetable storage and supermarket
Nowadays ,Our products have passed "CE"and "CCC" certificates ,the company has set up more than 200sales branches in more than 20 provinces of the country ,and the products have been exported to tens of countries and regions such as Asia , Europe, America, Australia and so on
YUYUN SANHE COMPANY IS THE PROFESSIONAL AND THE BIGGEST MANUFACTURE OF VENTILATION COOLING EQUIPMENTS IN ASIA.
