Directly buy from factory Fiber Reinforce Plastic Cone Fan
Gofee series FiberglassCone Fan chooses high quality material, advanced equipment, maximum optimized process and high standard to make each fan, expecting fan to have perfect performance at work place. All parts delicately designed, easy to install and use.
Mainly made up of blade, motor, outer FRP frame, protecting nets, supporting frames, shutters. It is developed based on aerodynamic, effectively reduce the wind resistance.

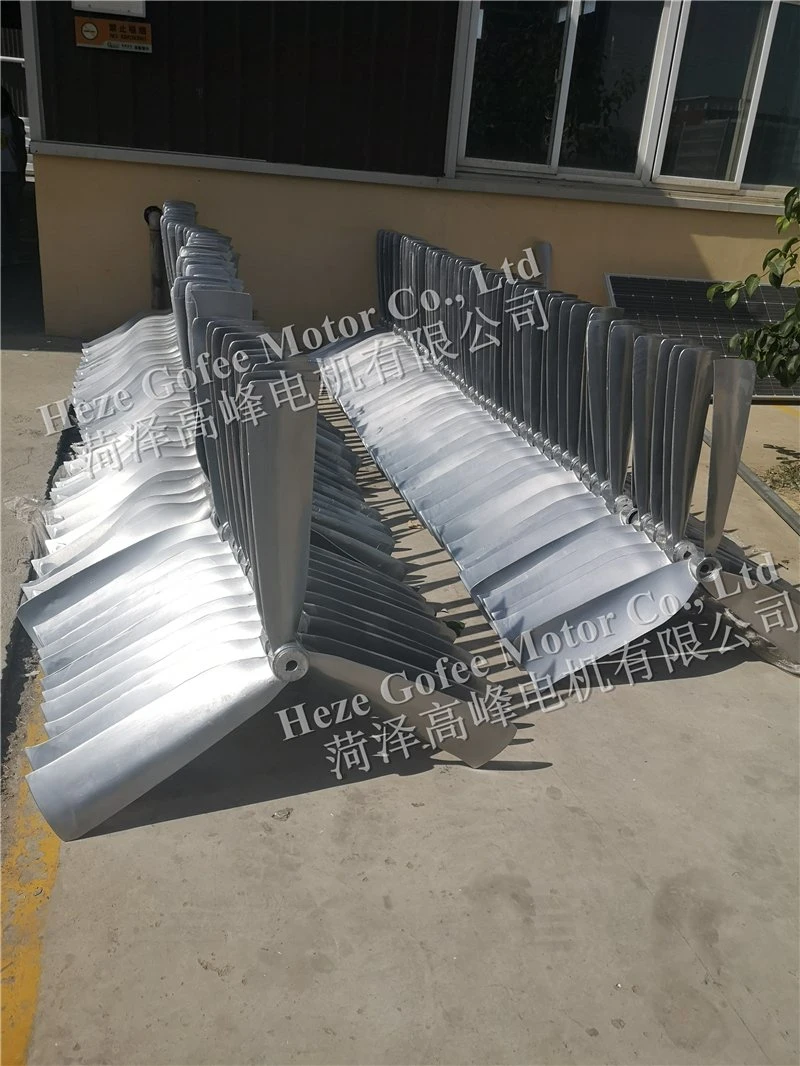

The major parts are made of fiberglass and cast aluminium blades through one time stamping;
Widely used in various types of buildings as farms, green houses, factory buildings, etc.
Features:
1. Perfect streamline appearance design, with low wind resistance, and high efficiency
2. Fiberglass frame, outer and inner surface is smooth, with little wind resistance, anti-corrosion,and no rust during lifetime.
3. cast alumimum blade, with high intensity, anti-corrosion and long life span.
4. fan bearing is with oil filler hole, for easy regular maintenance of bearing, greatly improve the life span of bearing.
5.new tensioner design with compression spring, with better effect of tension than that of cast aluminium blade automatic belt tensioner ordinary one.
Technical parameters:
Packing and shipping:
Company Profile :
Heze Gofee Motor Co., Ltd was established in 2004, dedicating to researching, producing and selling equipment for environmental control system.
Main products are fiberglass wall fan, roof fan, cooling pad, air inlet, electrical controller, reducer etc.

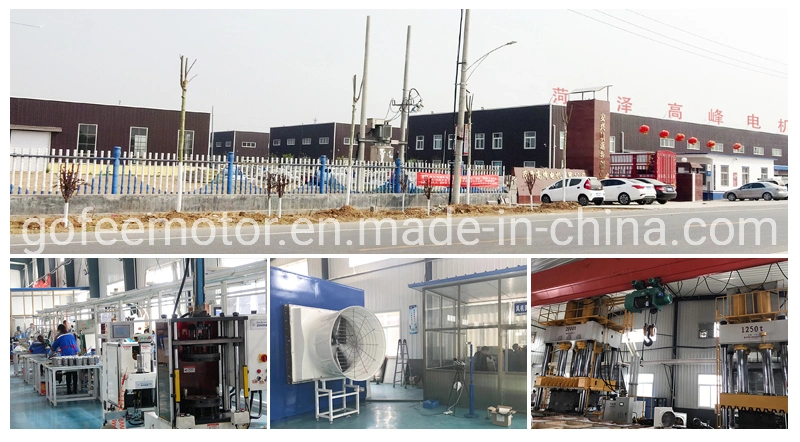

In October of 2016, new factory with 20000 s.q.m area was put into use. In order to ensure the product quality, our company has set up a motor workshop, mainly producing fan motor; FRP workshop, specializing in the production of fan casing; fan blade workshop, professional to ensure the balance of fan blades; and we have professional automatically fan installation workshop. At the same time, in order to provide customers with better service, a professional ventilation program design team is available any time, focusing on the design of ventilation plan for poultry farm, greenhouses, factories and other places.
Heze Gofee has got ISO9001 quality system certification, domestic CCC certification, EU CE certification. Fans are certified by Bess Lab in U.S.A.
At the forefront of industry development, we will make positive contributions to promoting industry development and technological progress.
Please feel free to contact us !
Gofee series FiberglassCone Fan chooses high quality material, advanced equipment, maximum optimized process and high standard to make each fan, expecting fan to have perfect performance at work place. All parts delicately designed, easy to install and use.
Mainly made up of blade, motor, outer FRP frame, protecting nets, supporting frames, shutters. It is developed based on aerodynamic, effectively reduce the wind resistance.
The major parts are made of fiberglass and cast aluminium blades through one time stamping;
Widely used in various types of buildings as farms, green houses, factory buildings, etc.
Features:
1. Perfect streamline appearance design, with low wind resistance, and high efficiency
2. Fiberglass frame, outer and inner surface is smooth, with little wind resistance, anti-corrosion,and no rust during lifetime.
3. cast alumimum blade, with high intensity, anti-corrosion and long life span.
4. fan bearing is with oil filler hole, for easy regular maintenance of bearing, greatly improve the life span of bearing.
5.new tensioner design with compression spring, with better effect of tension than that of cast aluminium blade automatic belt tensioner ordinary one.
Technical parameters:
| Fiberglass Cone Fan | |||||||||||||
| No. | Model | Air volume m³/h (Pressure 0 Pa) | Energy efficiency ratio m³/h/w | Rated power W | Rated voltage V | Rated current A | Drive mode | Blade speed | Blade material | Size W*H* T | Hole size mm | Outside diameter mm | Gross weight kg |
| 1 | GFM-55-D-ALH 55" | 55200 | 28 | 1500 | 380 | 3.6 | Belt | 533 | Cast aluminium | 1520*1550*1250 /1610*1640*1250 | 1530*1560 | 1640 | 95 |
| 2 | GFM-48-D-LH 48" | 40500 | 30 | 1100 | 380 | 2.8 | Belt | 608 | Cast aluminium | 1380*1380*1240 /1480*1480*1240 | 1390*1390 | 1470 | 88 |
| 3 | GFM-36-DLZ 36" | 22557 | 29 | 750 | 380 | 2.3 | Direct-driven | 945 | Cast aluminium | 1080*1080*1200/ 1180*1180*1200 | 1090*1090 | 1200 | 53 |
Packing and shipping:
Company Profile :
Heze Gofee Motor Co., Ltd was established in 2004, dedicating to researching, producing and selling equipment for environmental control system.
Main products are fiberglass wall fan, roof fan, cooling pad, air inlet, electrical controller, reducer etc.
In October of 2016, new factory with 20000 s.q.m area was put into use. In order to ensure the product quality, our company has set up a motor workshop, mainly producing fan motor; FRP workshop, specializing in the production of fan casing; fan blade workshop, professional to ensure the balance of fan blades; and we have professional automatically fan installation workshop. At the same time, in order to provide customers with better service, a professional ventilation program design team is available any time, focusing on the design of ventilation plan for poultry farm, greenhouses, factories and other places.
Heze Gofee has got ISO9001 quality system certification, domestic CCC certification, EU CE certification. Fans are certified by Bess Lab in U.S.A.
At the forefront of industry development, we will make positive contributions to promoting industry development and technological progress.
Please feel free to contact us !
